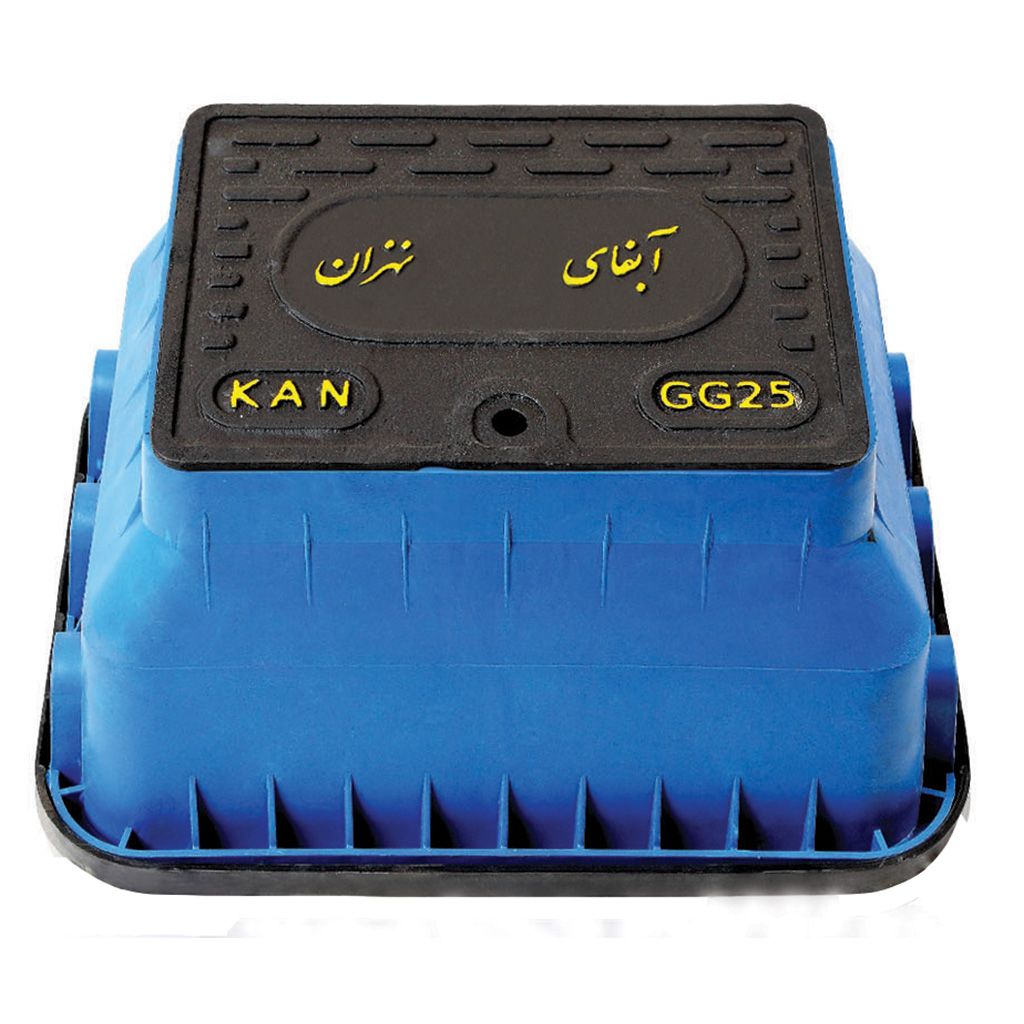

P.P. Water Meter Box

Polymer products/Polymer ‌Boxes/P.P. Water Meter Box

Definition and Application

This box is used to protect the meter and valves and provides easy access for meter reading. Standard observed in production process BS EN 124 Class A15. BS 5834. It is desirable to be used within the area of pedestrians and bicyclers made of P.P materials. It enjoys an integrated body to provide the required strength. It can be provided with a cast or polymeric cap. It can be installed with one or two extensions per box. It can be used for extension lines up to 1 inch.

p10004

Material Polymer

Application type Box

Specifications

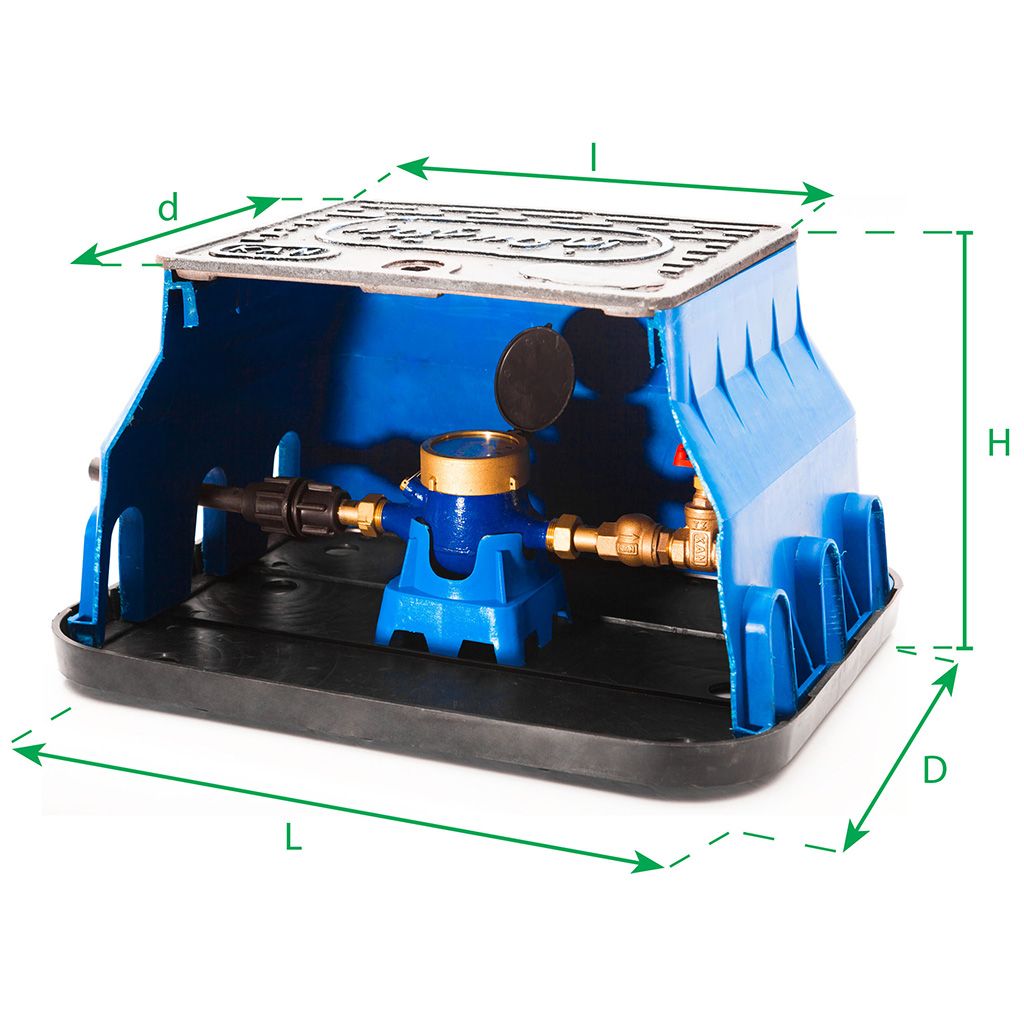

Model	L×D (cm)	H (cm)	I×d (cm)	Clear Opening CO	Secure Load (KN)	Test Load (KN)
Short	44×57	30	30×40	26	15	37
Long	44×57	40	30×40	26	15	37
