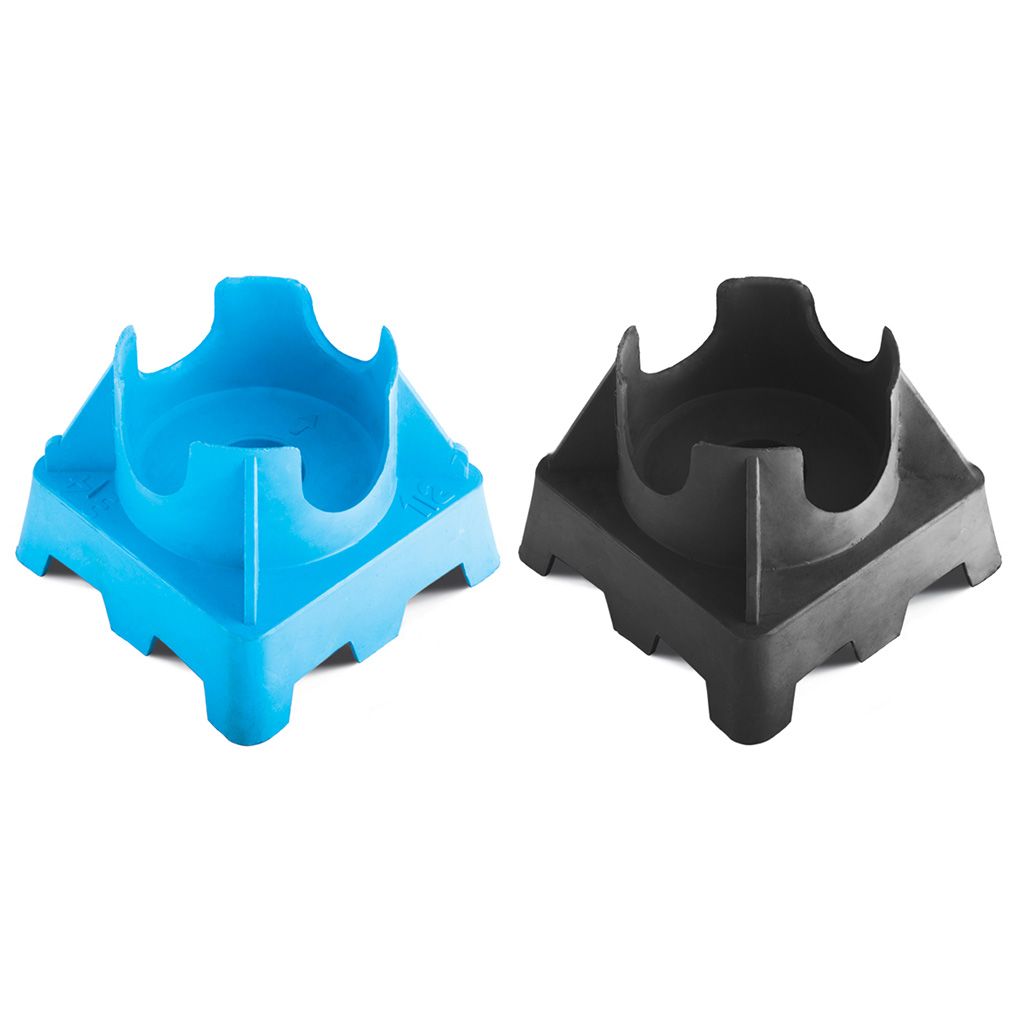

P.P. Water Meter Seat
Definition and Application

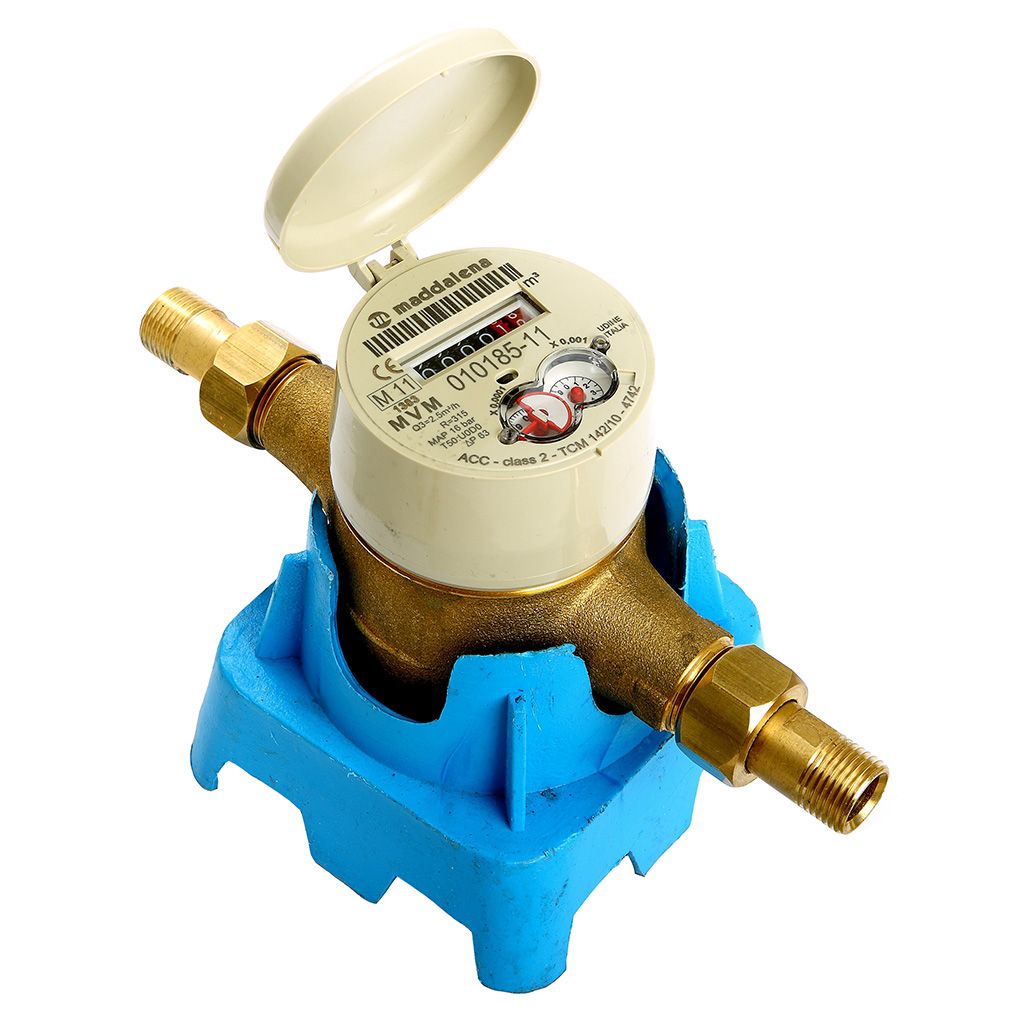

Meter seat is used to prevent contact with soil and prevents corrosion. It also prevents dislocation of meter due to side force and pressure. It is made of P.P. materials. It enjoys one blade and hollow networks to become more stabilized. It can be provided for extension lines of ½, ¾ and 1 inches. It is installed inside the integrated box.
SN
p10003
Material Polymer
Application type By product
Specifications | |||
Model | Outlet Dimension | waterMeter’s Seat depth | Watermeter holder diameter |
| ½” & ¾” | 150×150 | 20×60 | 11 |
| 1” | 125×125 | 20×50 | 10 |
