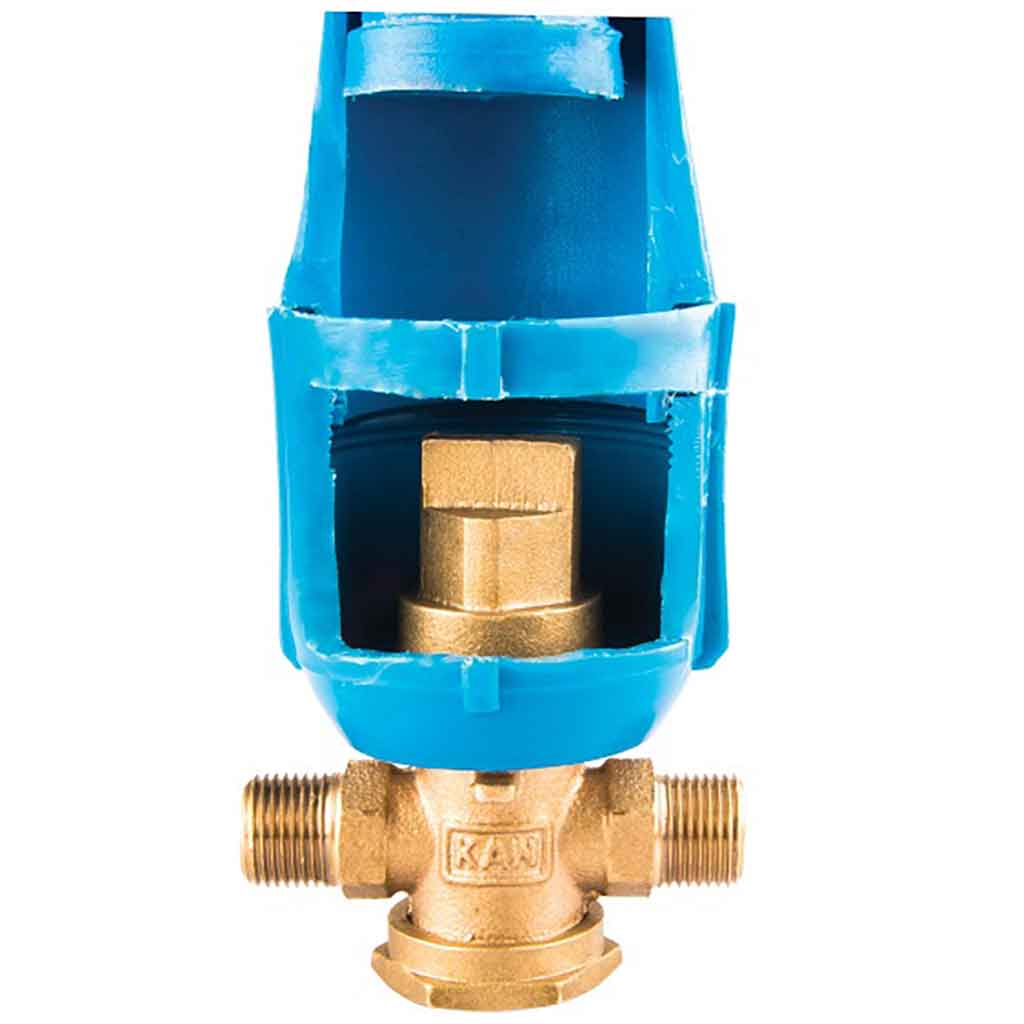

P.P. Curb Valve Box
Definition and Application
It is used to access direction of the cell wretch to the hidden valve. It is produced and tested according to 5834-BS4 standard. It is made of PP materials (It can be provided for extension lines of ½-3/4 and 1 inches. It is installed outside the subscribers’ property. It is made in two different types of 70 and 90 cm in considering the degree of chilling.

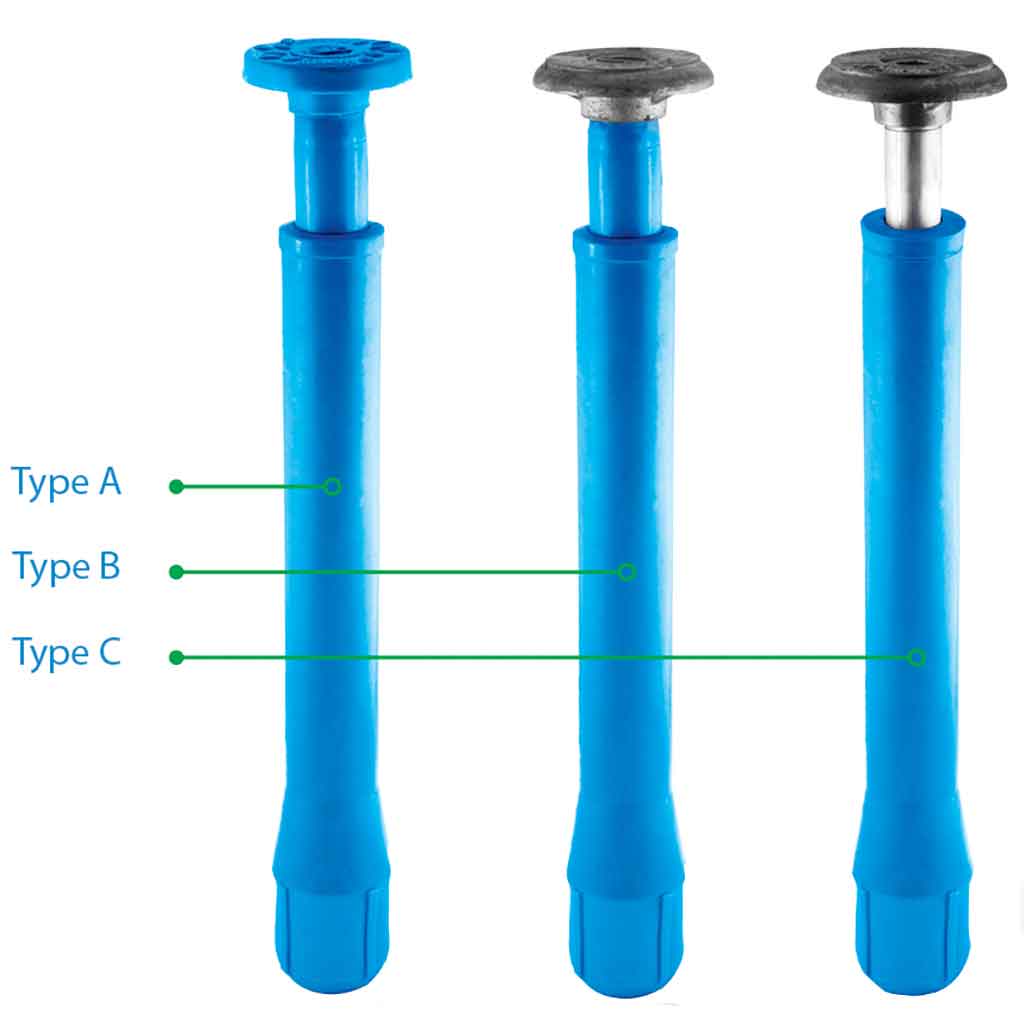

It can be provided in the Following forms
• Full polymeric. • body and inner polymeric pipe with cast cap. • polymeric body and interior galvanized pipe and cast cap.
SN
p10001
Material Polymer
Application type By product
Specifications | ||||
Model | Maximum lengthcompartment (cm) | Minimum internal diameter (cm) | Thread diamerter (mm) | Gears per Inch (Thread/Inch) |
| Short/70cm | 40-70 | 28 | 46 | 11 |
| Long/90cm | 55-90 | 28 | 46 | 11 |
