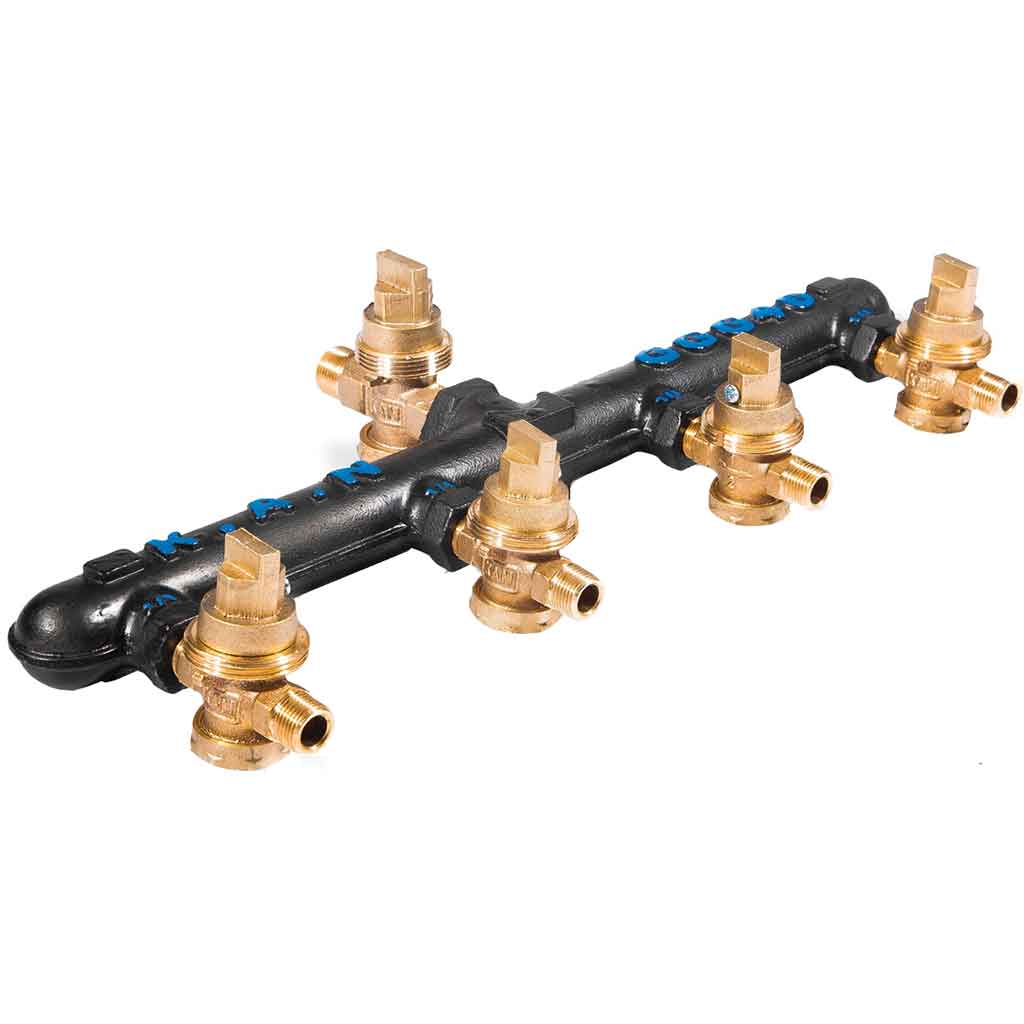

Ductil Water Collector

Cast iron products/Cast iron By products/Ductil Water Collector

Definition and Application

It is used to dive the extension lines in properties with more than two units. It is made of ducktail cast according to 1693 DIN Standard. The threads are made according to 800 AWWA Standard.

D10025

Material Cast iron

Application type ‌By product

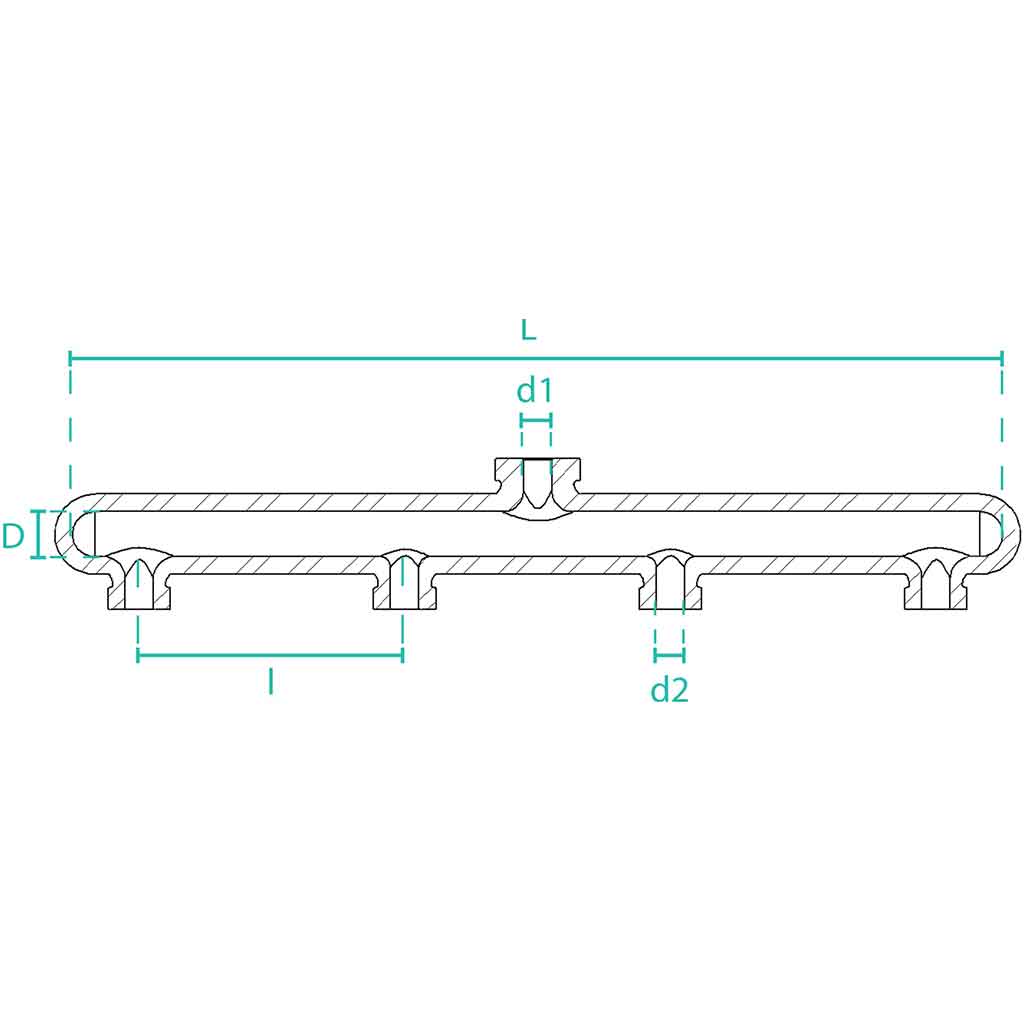

	Dimension
Number of Outlet	Collector inlet Diameter D (mm)	The center to center distance of the outlets I (mm)	Outlet Corporation Diameter d2 (inch)	Corporation Diameter d1 (inch)	Collector length L (mm)
2	1	150	½	¾	250
3				¾	380
4				¾	550
5	1½			1	760
6				1	920
7				1½	1070
8				1½	1220
