Ductile Curb Valve Seat
Definition and Application

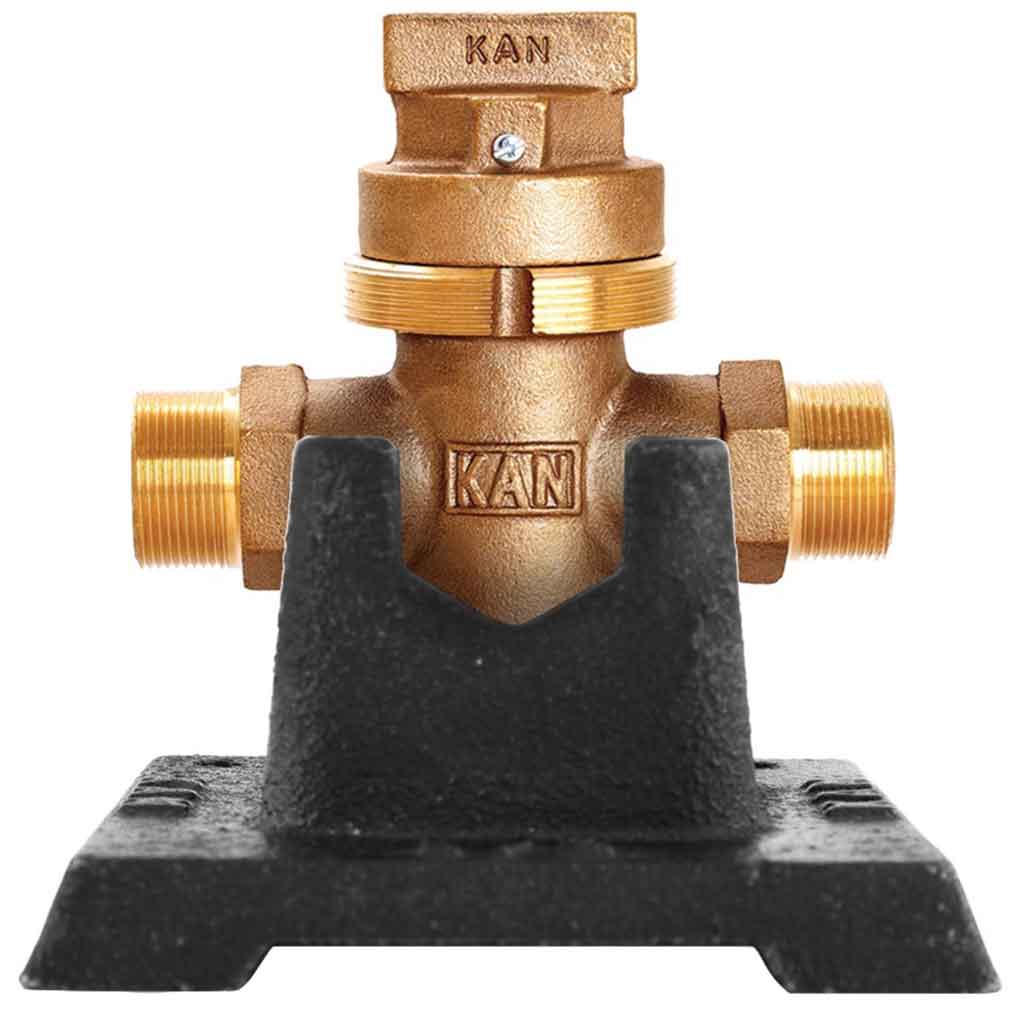

The seat of the valve is to prevent turn of the valve upon opening and closing the valve and to prevent deposition of the valve of the extension line, made of ducktail cast according to 1693 DIN Standard. It enjoys meshy floors to become stabilized in soil. It can be provided for extension lines of 1.2-2 inches.
SN
D10024
Material Cast iron
Application type By product

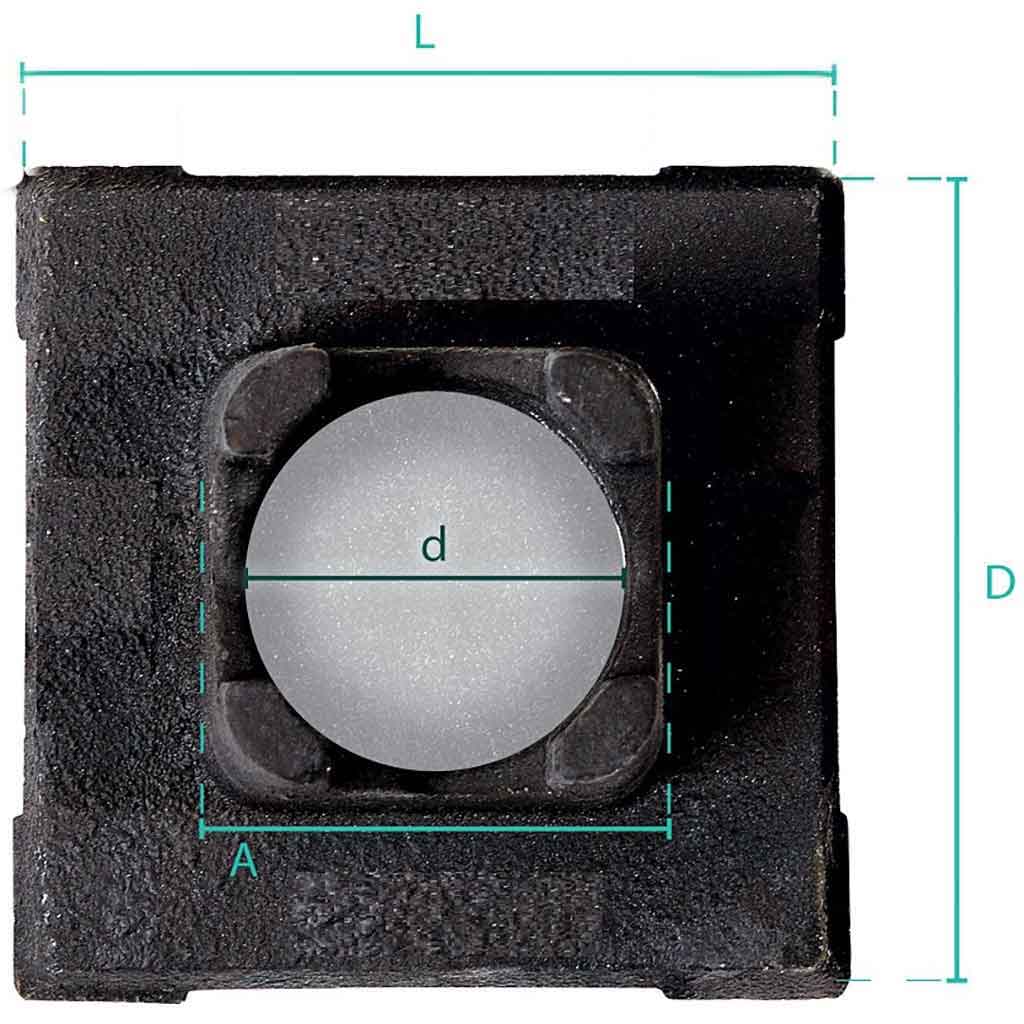

Dimension | ||||
Size(Inch) | L×D | H | A | d |
| ½ | 110×110 | 25 | 54 | 48 |
| ¾ | 120×120 | 26 | 60 | 53 |
| 1 | 135×135 | 25 | 70 | 60 |
| 1¼ -1½ | 220×220 | 28 | 115 | 100 |
| 2 | 250×220 | 30 | 132 | 113 |
