Curb Valve Box
Definition and Application

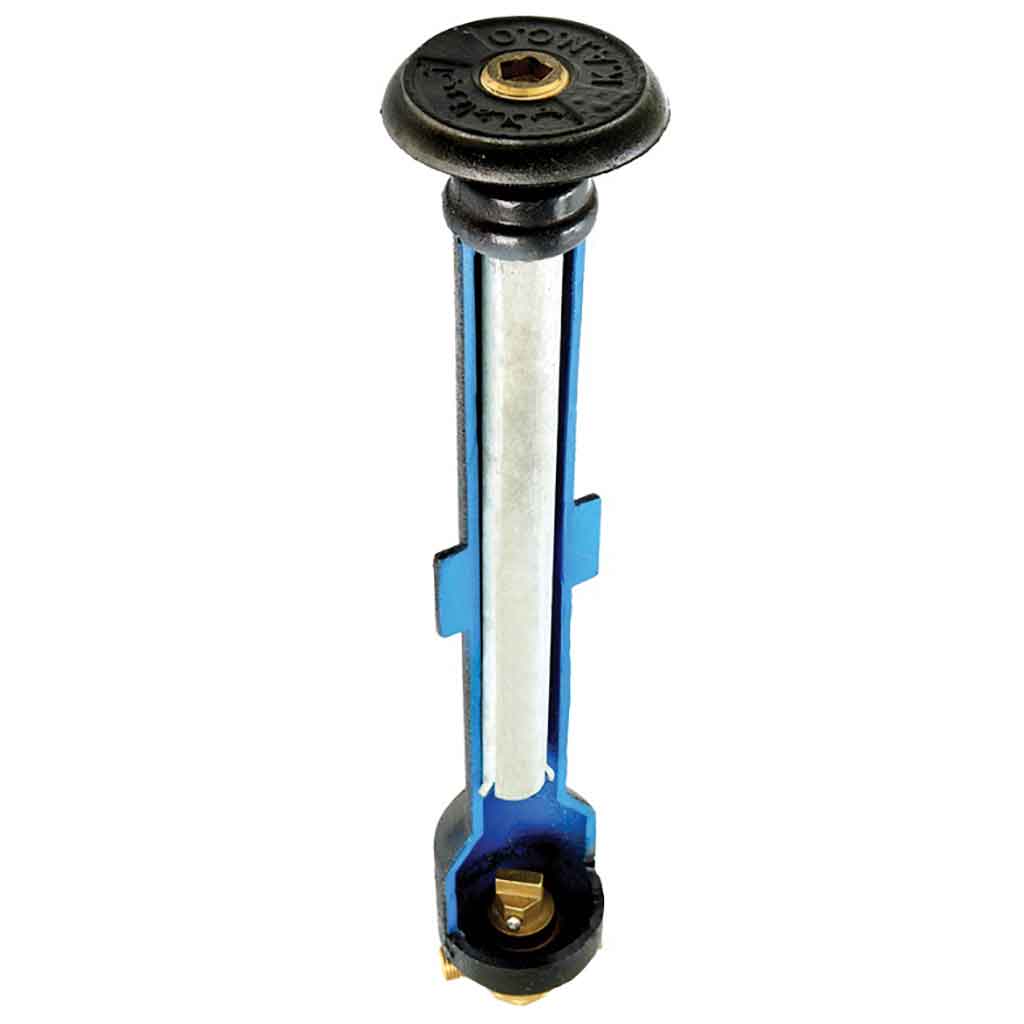

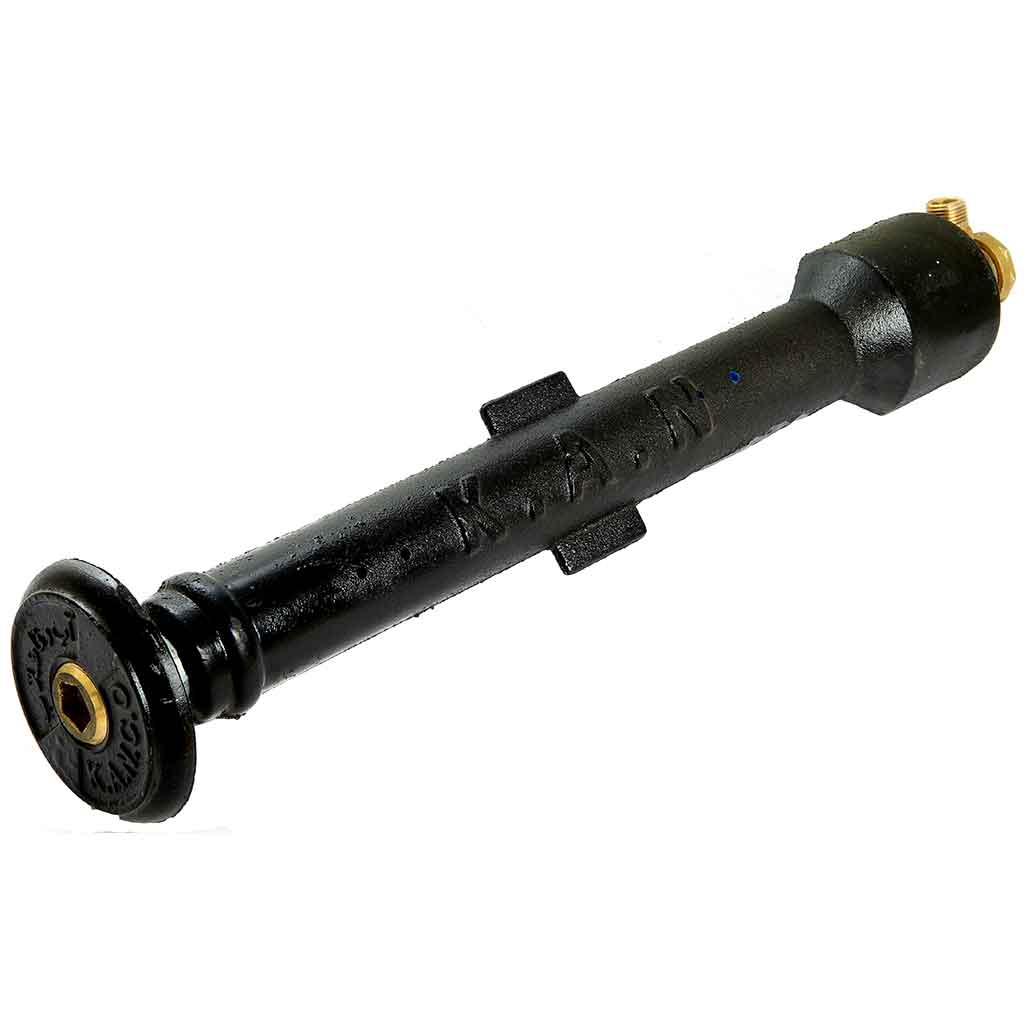

It is used to direct the cell wretch to the hidden extension valve. It can be provided for extension liens of 1.2-2 inches. The cap and body are made of gray cast according to 1691 DIN Standard. The interior pipe is made of iron and galvanized in interior area. The core of the cap is made of forged or polymeric brass. It is installed outside the subscribers’ property, hidden and mounted on on-off valve.
SN
D10023
Material Cast iron
Application type By product
Dimension | ||||
Corporation Size | Minimum Box length | Maximum Box length | Minimum inlet DiameterInlet Pipe | The diameter of the connecting gear to the valve |
| Corporation ¾ & ½ & 1 | 500 | 750 | 28 | 45.5 |
| Corporations 1¼ & 1½ & 2 | 490 | 700 | 51.5 | 97.5 |
