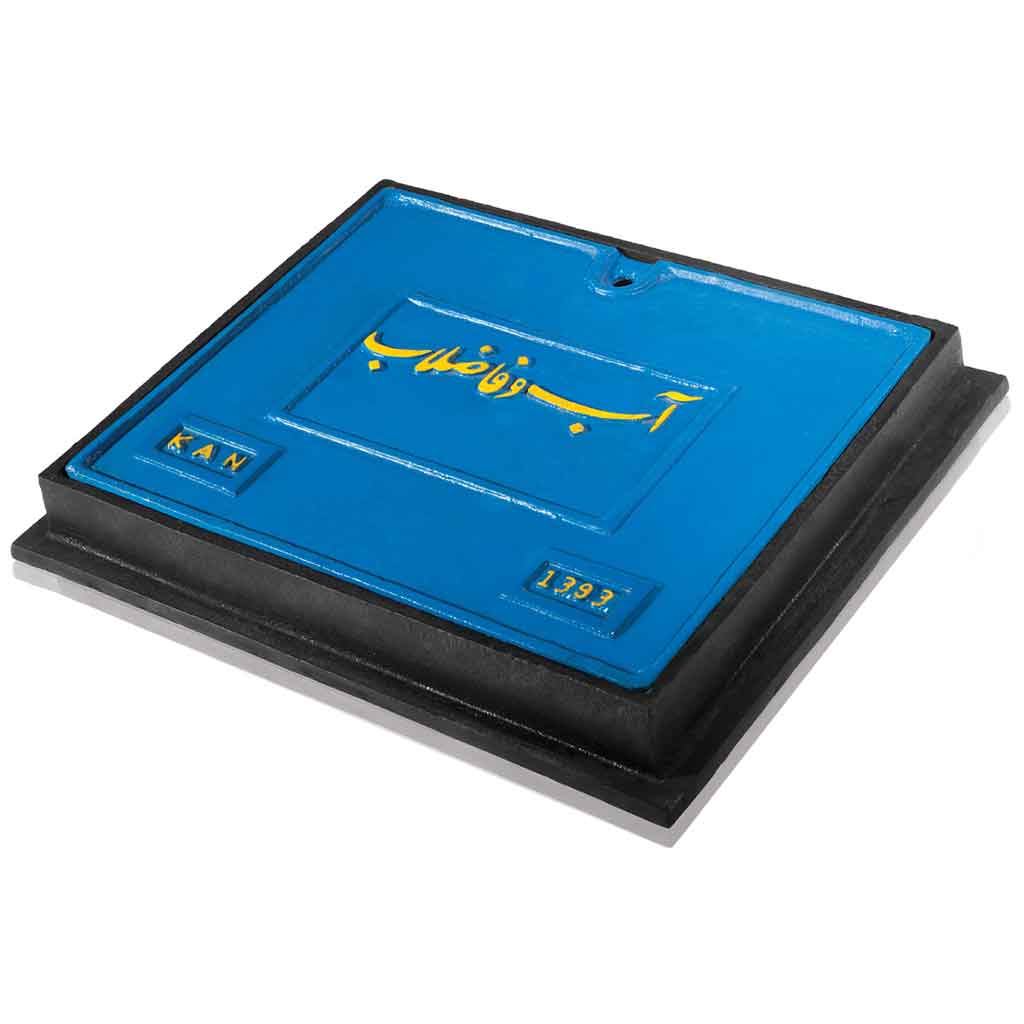

Water Meter Cover C250
Definition and Application
It is used for access of meter and valves that are installed on the box or chamber of the meter.
Properties
It is produced and tested according to BS EN 124 Class C250 Standard. It is proper to be used within the area of pedestrians and bicyclers. It is also used on water meter box. It meets DIN1693 casting standard. It enjoys a proper cover of 250 microns in thickness with desirable range of colors as selected by customers. It has a five-wing lock made of aluminum or brass.
SN
D10017
Material Cast iron
Application type Cover

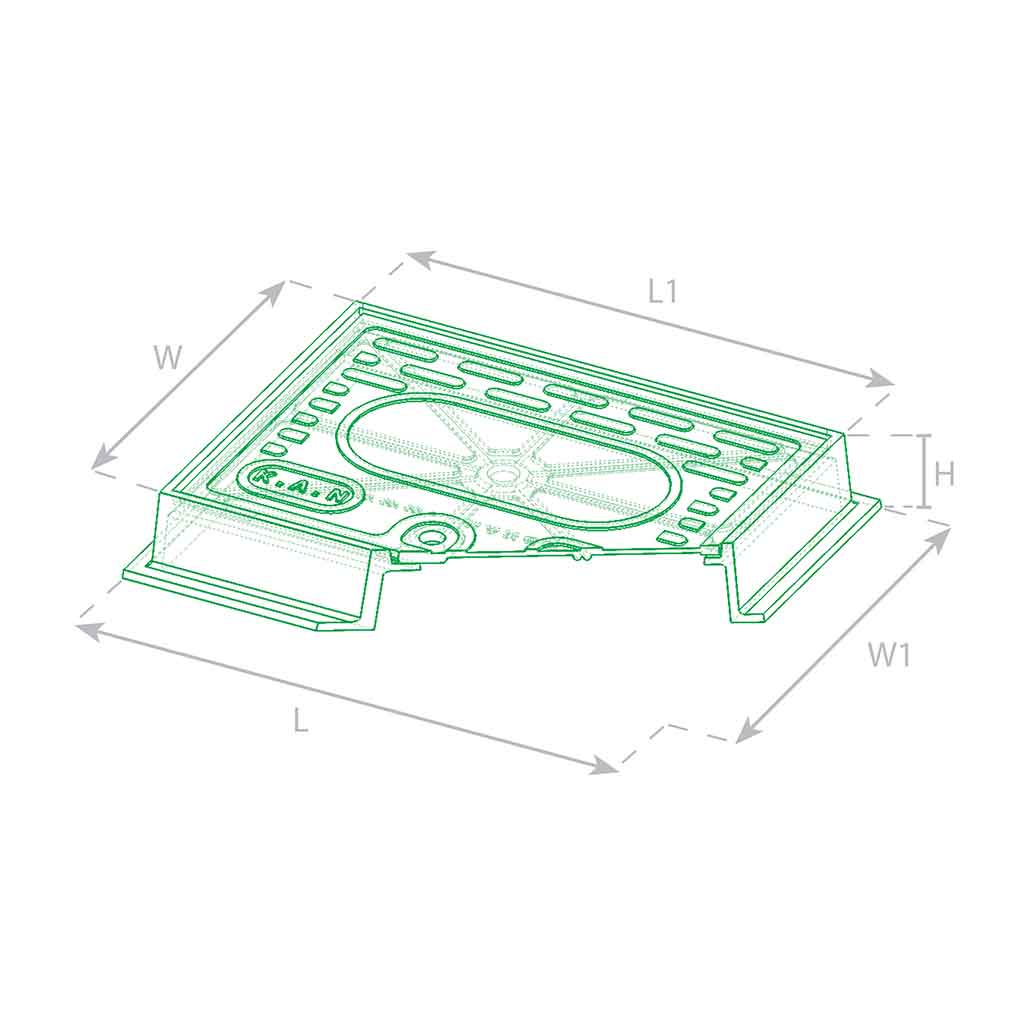

Size | Safe pressure | Test pressure | Inlet dimensions | Height | Length x width | CO |
| 30×40* | 2.7 ton | 2.5 ton | 295×390 | 70 | 470×370 | 70 |
| 40×50** | 2.7 ton | 2.5 ton | 415×510 | 75 | 580×480 | 75 |
*Suitable Size For Water services up to 1 Inch is 30×40
**Suitable Size For Water services beyond 1 Inch is 40×50
