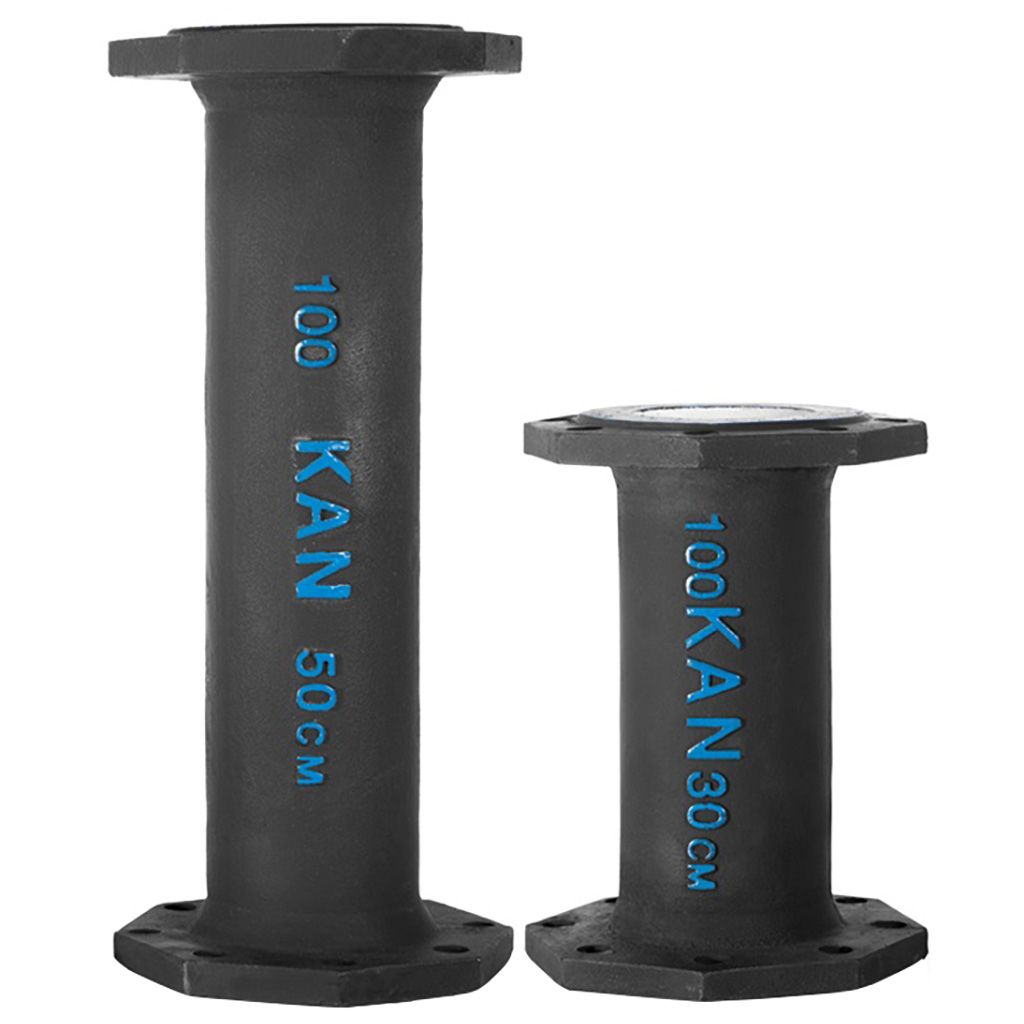

Double Flanged Pipe
Definition and Application
In order to compensate the distance between the two pipes or flanged couplings, this part is used. Flange standard according to DIN EN 1092-2. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
Flat or patched rubber gaskets are used to seal the flanged parts. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion. Access of the holes on the two sides of the flange should be in one direction.
SN
D10011
Material Cast iron
Application type Connection
Dimension | Connection Threads | ||||
Nominal Diameter (DN) | L | e | Nominal Diameter (DN) | L | e |
| 80 | 20 / 30 40 / 50 | 7 | 250 | 80 | 9 |
| 100 | 30 / 40 50 | 7.2 | 300 | 100 | 9.6 |
| 150 | 30 / 40 50 | 7.8 | 400 | 150 | 10.8 |
| 200 | 30 / 40 50 | 8.4 | 500 | 200 | 12 |
