Double Flanged Taper
Definition and Application
It is used to connect two pipes with different diameters. Flange standard according to DIN EN 1092-2. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
Flat or patched rubber gaskets are used to seal the flanged parts. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion. The consistency between flanged holes with large and small diameters should be observed.
SN
D10009
Material Cast iron
Application type Connection

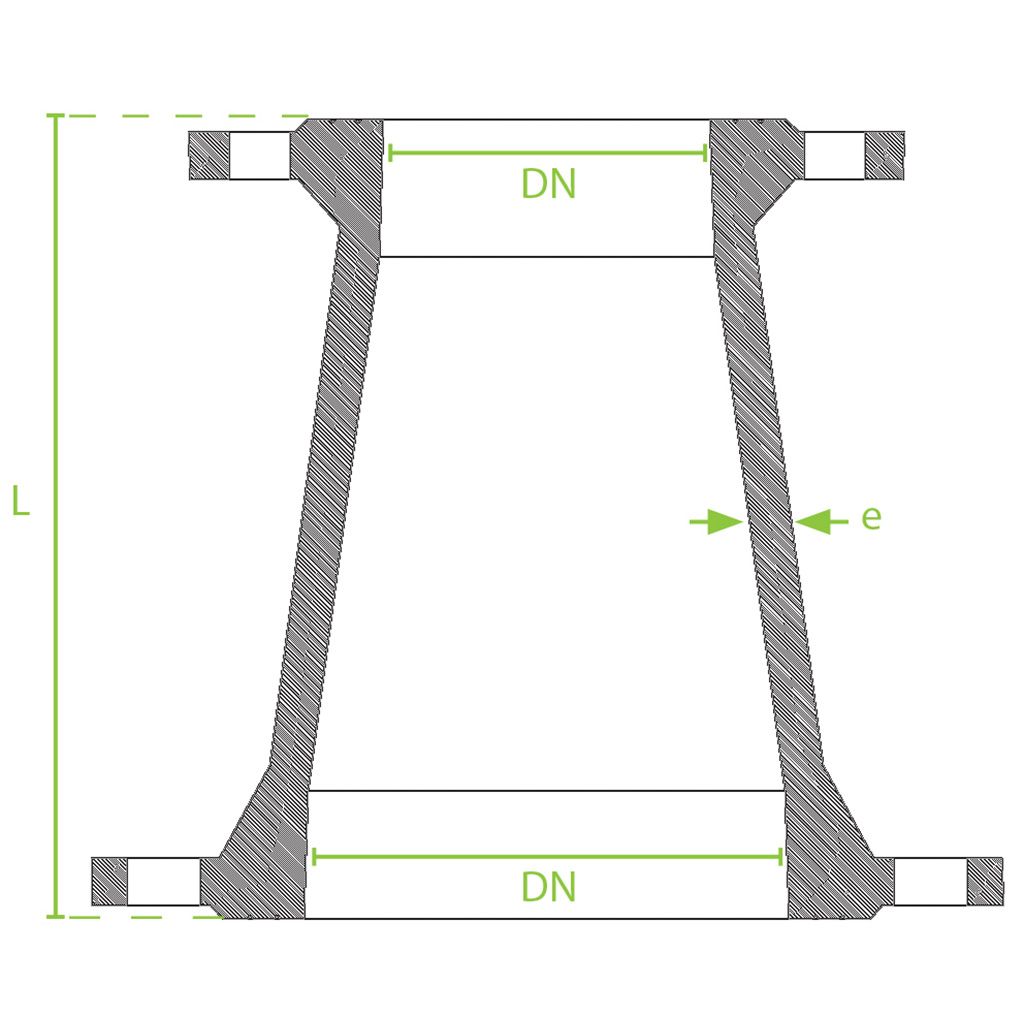

Dimension | Connection Threads | ||||
Nominal Diameter (DN) | L | e | Nominal Diameter (DN) | L | e |
| 50×40 | 150 | 7 | 150×100 | 300 | 7.8 |
| 60×50 | 160 | 7 | 200×100 | 600 | 8.4 |
| 65×50 | 200 | 7 | 200×150 | 300 | 8.4 |
| 80×60 | 200 | 7 | 250×150 | 600 | 9 |
| 80×65 | 200 | 7 | 300×150 | 600 | 9.6 |
| 100×80 | 200 | 7.2 | 250×200 | 300 | 9 |
| 150×80 | 400 | 7.8 | 300×200 | 600 | 9.6 |
Dimension | Connection Threads | ||||
Nominal Diameter (DN) | L | e | Nominal Diameter (DN) | L | e |
| 350×200 | 650 | 10.2 | 700×400 | 800 | 14.4 |
| 400×200 | 700 | 10.8 | 700×450 | 750 | 14.4 |
| 300×250 | 300 | 9.6 | 700×500 | 700 | 14.4 |
| 350×350 | 600 | 10.2 | 700×600 | 600 | 14.4 |
| 400×250 | 650 | 10.8 | 800×450 | 900 | 15.6 |
| 350×300 | 300 | 10.2 | 800×500 | 800 | 15.6 |
| 400×300 | 600 | 10.8 | 800×600 | 700 | 15.6 |
| 500×300 | 700 | 12 | 800×700 | 600 | 15.6 |
| 400×350 | 300 | 10.8 | 900×500 | 1000 | 16.8 |
| 500×350 | 650 | 12 | 900×600 | 800 | 16.8 |
| 500×400 | 600 | 12 | 900×700 | 700 | 16.8 |
| 500×450 | 300 | 12 | 900×800 | 600 | 16.8 |
| 600×350 | 750 | 13.2 | 1000×600 | 1000 | 18 |
| 600×400 | 700 | 13.2 | 1000×700 | 800 | 18 |
| 600×450 | 650 | 13.2 | 1000×800 | 700 | 18 |
| 600×500 | 600 | 13.2 | 1000×900 | 600 | 18 |
