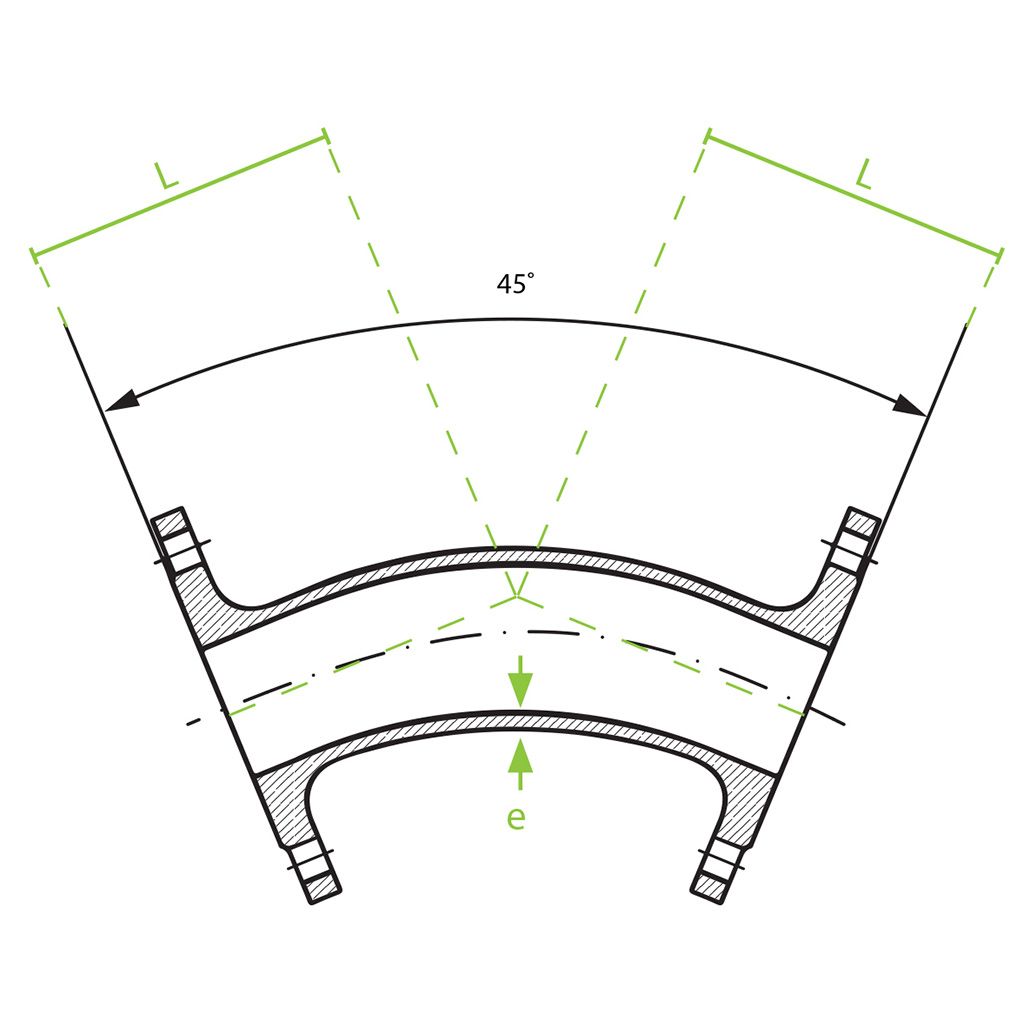

Double- flanged 45° (1/8) bends
Definition and Application
It is used to connect two pipes with double flanged tee that are located at an angle of 45 degrees. Flange standard according to DIN EN 1092-2. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
Flat or patched rubber gaskets are used to seal the flanged parts. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion.
SN
D10007
Material Cast iron
Application type Connection
Angle 45 degree
Dimension | Dimension | ||||
Nominal Diameter (DN) | L | e | Nominal Diameter (DN) | L | e |
| 80 | 130 | 7 | 400 | 234 | 10.8 |
| 100 | 140 | 7.2 | 450 | 349 | 11.4 |
| 125 | 7.5 | 500 | 375 | 12 | |
| 150 | 160 | 7.8 | 600 | 426 | 13.2 |
| 200 | 180 | 8.4 | 700 | 478 | 14.4 |
| 250 | 350 | 9 | 800 | 529 | 15.6 |
| 300 | 400 | 9.6 | 900 | 581 | 16.8 |
| 350 | 298 | 10.2 | 1000 | 632 | 18 |
