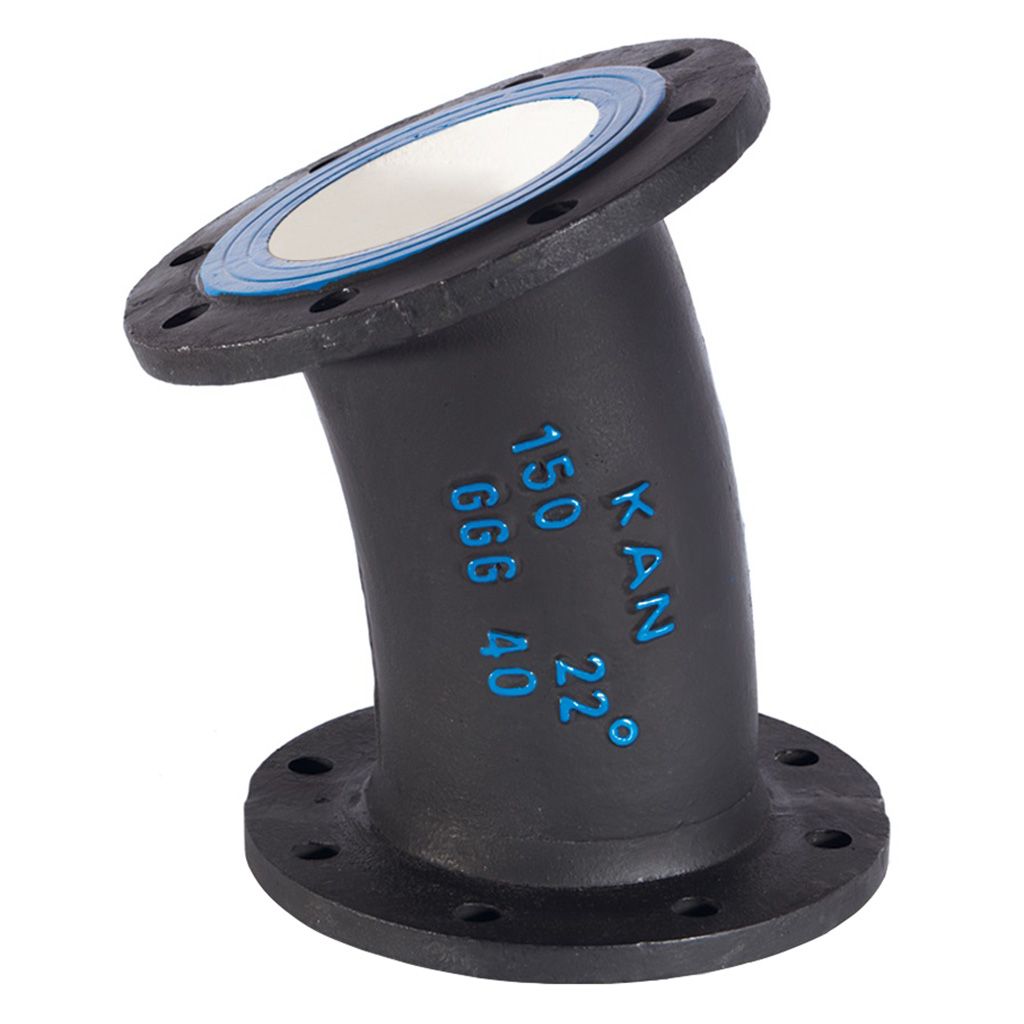

Double Flanged 22.5° (1/16) bends
Definition and Application
It is used to connect two pipes with double flanged tee that are located at an angle of 22.5 degrees. Flange standard according to DIN EN 1092-2. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
Flat or patched rubber gaskets are used to seal the flanged parts. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion.
SN
D10006
Material Cast iron
Application type Connection
Angle 22.5 degree

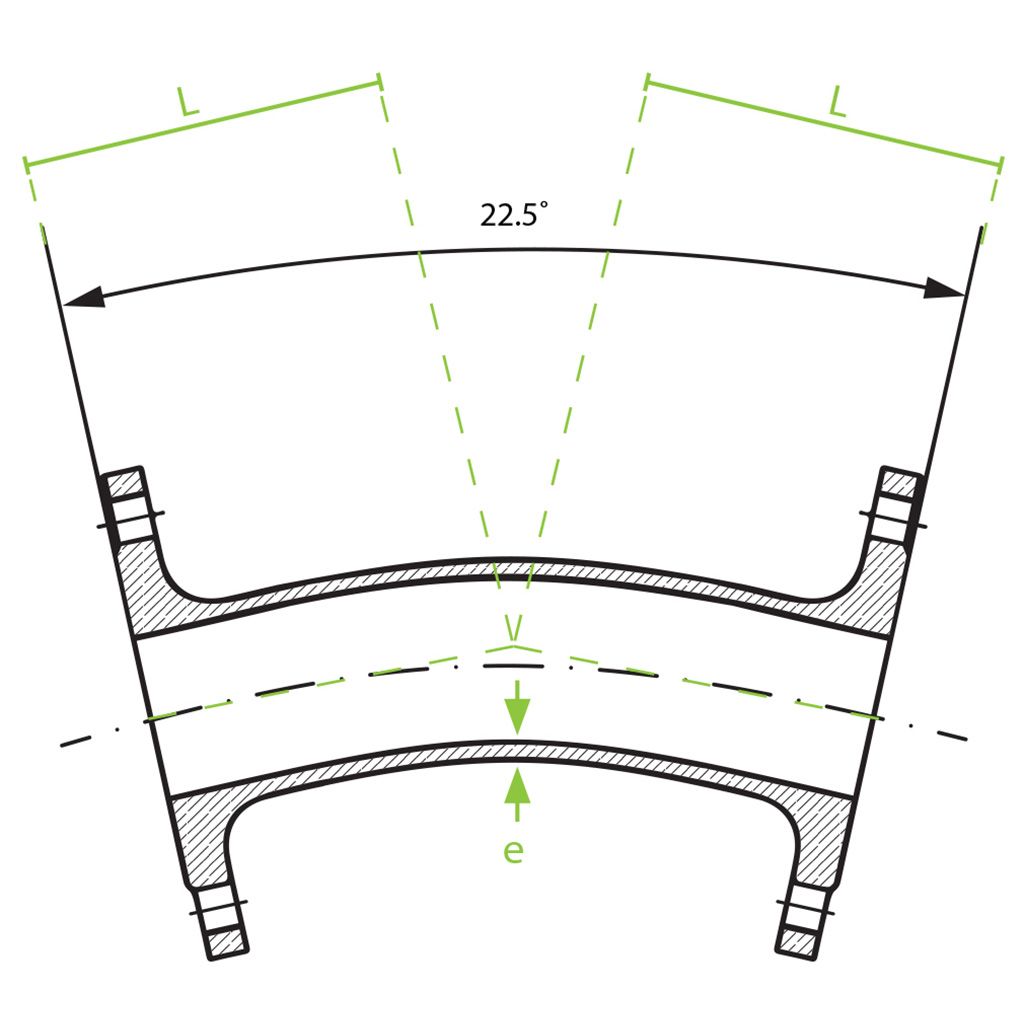

Dimension | Dimension | ||||
Nominal Diameter (DN) | L | e | Nominal Diameter (DN) | L | e |
| 80 | 130 | 7 | 400 | 234 | 10.8 |
| 100 | 140 | 7.2 | 450 | 349 | 11.4 |
| 125 | 7.5 | 500 | 375 | 12 | |
| 150 | 160 | 7.8 | 600 | 426 | 13.2 |
| 200 | 180 | 8.4 | 700 | 478 | 14.4 |
| 250 | 350 | 9 | 800 | 529 | 15.6 |
| 300 | 400 | 9.6 | 900 | 581 | 16.8 |
| 350 | 298 | 10.2 | 1000 | 632 | 18 |
