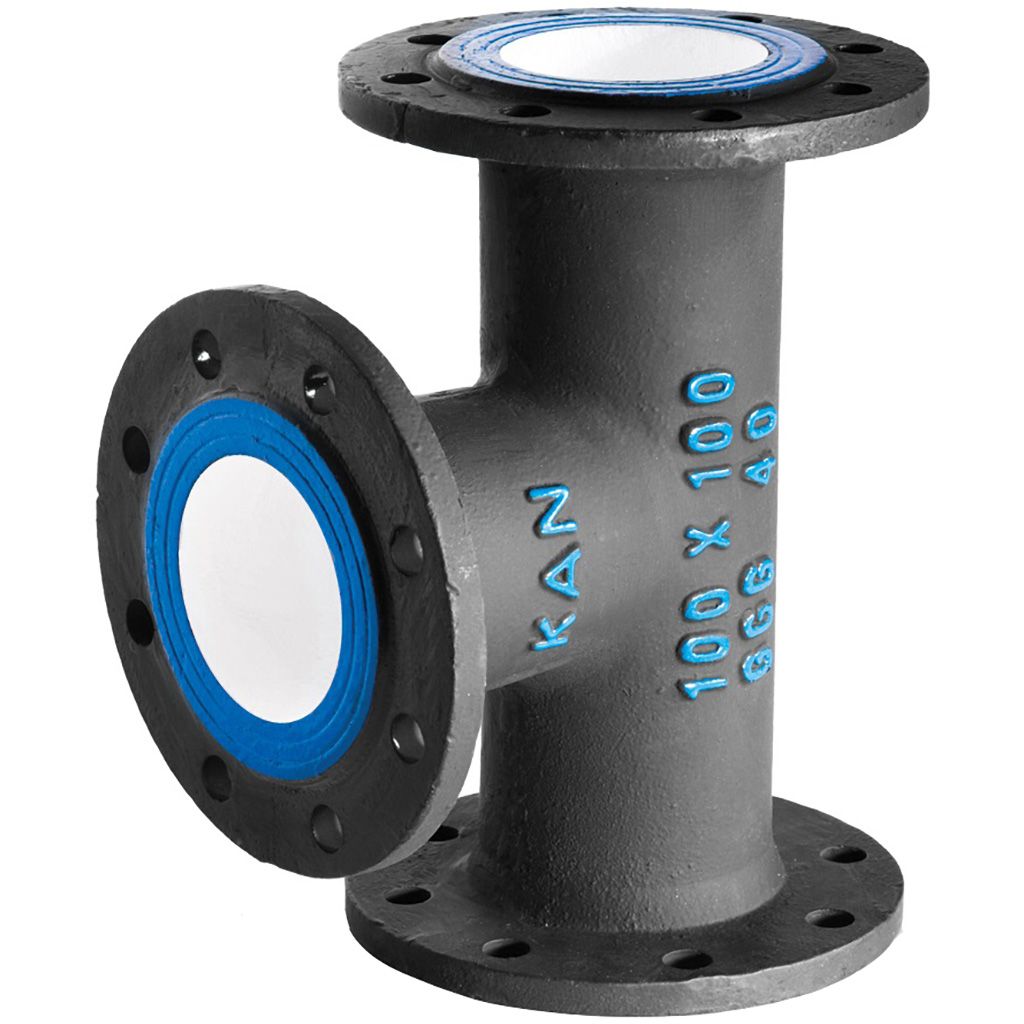

Flanged Tee
Definition and Application
It is used to make an extension from the main pipe. Flange standard according to DIN EN 1092. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
Flat or patched rubber gaskets are used to seal the flanged parts. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion. The holes of all three flanges should be made in such a manner that the parts should be connected in vertical form.
SN
D10003
Material Cast iron
Application type Connection
Body | Corporation | ||||||
Size(DN) | Size(dn) | e1 | L | e2 | I | ||
Type A | Type B | Type A | Type B | ||||
| 80 | 80 | 7 | 330 | 330 | 7 | 165 | 165 |
| 100 | 80 | 7.2 | 360 | 330 | 7 | 175 | 170 |
| 100 | 100 | 7.2 | 360 | 330 | 7.2 | 180 | 180 |
| 150 | 80 | 7.8 | 440 | 360 | 7 | 205 | 200 |
| 150 | 100 | 7.8 | 440 | 380 | 7.2 | 210 | 205 |
| 150 | 150 | 7.8 | 440 | 440 | 7.8 | 220 | 220 |
| 200 | 80 | 8.4 | 520 | 380 | 7 | 235 | 225 |
| 200 | 100 | 8.4 | 520 | 400 | 7.2 | 240 | 230 |
| 200 | 150 | 8.4 | 520 | 460 | 7.8 | 250 | 245 |
| 200 | 200 | 8.4 | 520 | 520 | 8.4 | 260 | 260 |
| 250 | 80 | 9 | --- | 405 | 7 | --- | 265 |
| 250 | 100 | 9 | 700 | 425 | 7.2 | 275 | 270 |
| 250 | 150 | 9 | --- | 585 | 7.8 | --- | 280 |
| 250 | 200 | 9 | 700 | 540 | 8.4 | 325 | 290 |
| 250 | 250 | 9 | 700 | 600 | 9 | 360 | 300 |
| 300 | 80 | 9.6 | --- | 425 | 7 | --- | 295 |
Body | Corporation | ||||||
Size(DN) | Size(dn) | e1 | L | e2 | I | ||
Type A | Type B | Type A | Type B | ||||
| 300 | 100 | 9.6 | 800 | 450 | 7.2 | 300 | 300 |
| 300 | 150 | 9.6 | --- | 505 | 7.8 | --- | 310 |
| 300 | 200 | 9.6 | 800 | 585 | 8.4 | 350 | 320 |
| 300 | 250 | 9.6 | --- | 620 | 9 | --- | 330 |
| 300 | 300 | 9.6 | 800 | 680 | 9.6 | 400 | 340 |
| 350 | 100 | 10.2 | 850 | 470 | 7.2 | 325 | 330 |
| 350 | 150 | 10.2 | --- | 530 | 7.8 | --- | 340 |
| 350 | 200 | 10.2 | 850 | 585 | 8.4 | 325 | 350 |
| 350 | 250 | 10.2 | --- | 645 | 9 | --- | 360 |
| 350 | 300 | 10.2 | 850 | 645 | 9.6 | --- | 370 |
| 350 | 350 | 10.2 | 850 | 760 | 10.2 | 425 | 380 |
| 400 | 100 | 10.8 | 90 | 490 | 7.2 | 350 | 360 |
| 400 | 150 | 10.8 | --- | 550 | 7.8 | --- | 370 |
| 400 | 200 | 10.8 | 900 | 610 | 8.4 | 350 | 380 |
| 400 | 250 | 10.8 | --- | 665 | 9 | --- | 390 |
| 400 | 300 | 10.8 | --- | 725 | 9.6 | --- | 400 |
Body | Corporation | ||||||
Size(DN) | Size(dn) | e1 | L | e2 | I | ||
Type A | Type B | Type A | Type B | ||||
| 400 | 350 | 10.8 | --- | 725 | 10.2 | --- | 410 |
| 400 | 400 | 10.8 | 900 | 840 | 10.8 | 450 | 420 |
| 500 | 150 | 12 | 1000 | 650 | 7.8 | 400 | 420 |
| 500 | 200 | 12 | 1000 | 650 | 8.4 | 400 | 440 |
| 500 | 250 | 12 | 1000 | 650 | 9 | 400 | 450 |
| 500 | 300 | 12 | 1000 | 650 | 9.6 | 400 | 460 |
| 500 | 400 | 12 | 1000 | 885 | 10.8 | 500 | 480 |
| 500 | 500 | 12 | 1000 | 1000 | 12 | 500 | 500 |
| 600 | 200 | 13.2 | 1100 | 700 | 8.4 | 450 | 500 |
| 600 | 400 | 13.2 | 1100 | 930 | 10.8 | 550 | 540 |
| 600 | 600 | 13.2 | 1100 | 1165 | 13.2 | 550 | 580 |
| 700 | 200 | 14.4 | 650 | --- | 8.4 | 525 | --- |
| 700 | 400 | 14.4 | 970 | --- | 10.8 | 555 | --- |
| 700 | 700 | 14.4 | 1200 | --- | 14.4 | 600 | --- |
| 800 | 200 | 15.6 | 690 | --- | 8.4 | 585 | --- |
| 800 | 400 | 15.6 | 910 | --- | 10.8 | 615 | --- |
Body | Corporation | ||||||
Size(DN) | Size(dn) | e1 | L | e2 | I | ||
Type A | Type B | Type A | Type B | ||||
| 800 | 600 | 15.6 | 1350 | --- | 13.2 | 645 | --- |
| 800 | 800 | 15.6 | 1350 | --- | 15.6 | 675 | --- |
| 900 | 200 | 16.8 | 730 | --- | 8.4 | 645 | --- |
| 900 | 400 | 16.8 | 950 | --- | 10.8 | 675 | --- |
| 900 | 600 | 16.8 | 1500 | --- | 13.2 | 705 | --- |
| 900 | 900 | 16.8 | 1500 | --- | 16.8 | 750 | --- |
| 1000 | 500 | 18 | 1650 | --- | 12 | 705 | --- |
| 1000 | 800 | 18 | 1650 | --- | 15.6 | 735 | --- |
| 1000 | 1000 | 18 | 1650 | --- | 18 | 525 | --- |
