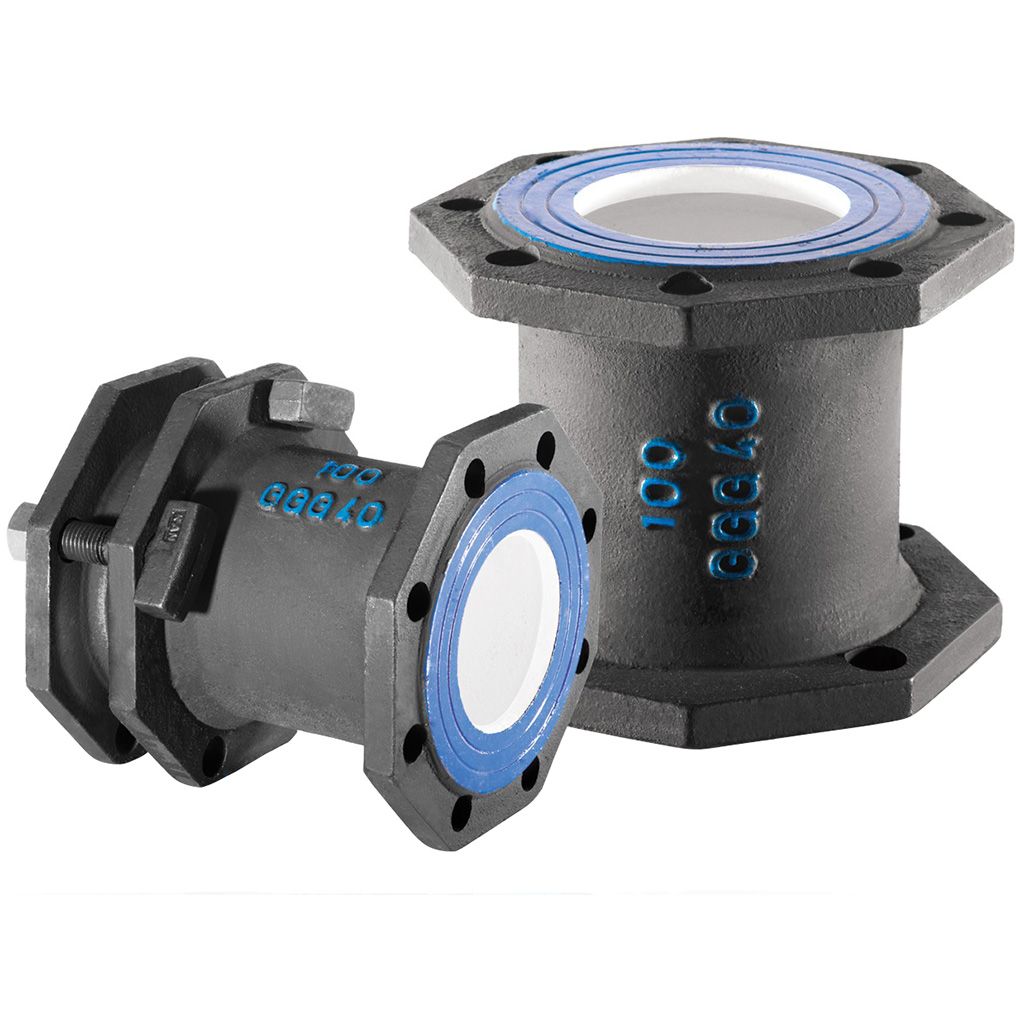

Flange Socket
Definition and Application
It is used to flange cast iron pipes and to connect flanged valves and fittings. Flange standard according to DIN EN 1092. Dimensions standard according to ISO 2531. Casting standard according to DIN EN 1693.
Key points
When using this kind of flange, the surface of the cut section of the pipe should be smooth and vertical. Flat or patched rubber gaskets are used to seal the flanged parts. To seal the bolted part where the pipe enters the interior couplings, bolted gland gasket with bolted gland is used. It enjoys bentoniti/primer/bitumen cover as per the order placed by customers to prevent corrosion.
SN
D10001
Material Cast iron
Application type Connection

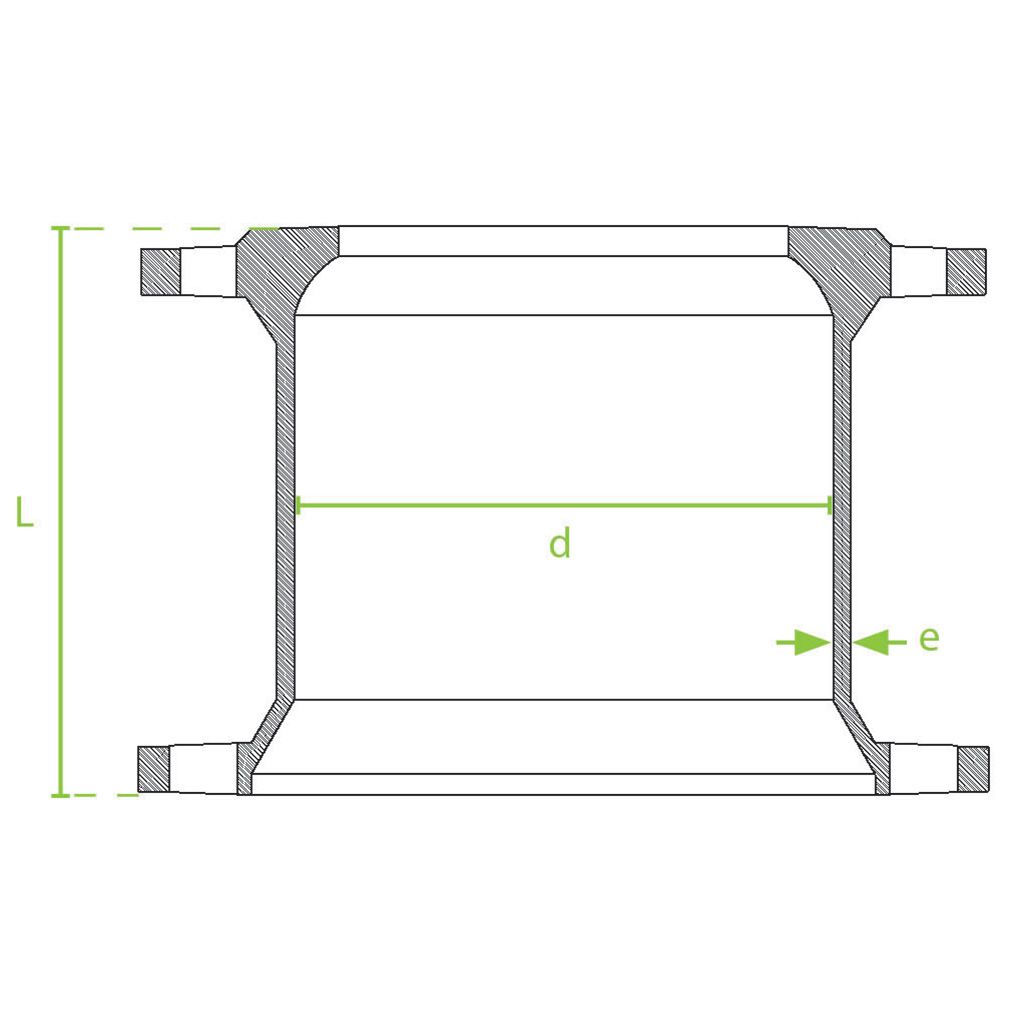

Dimension | Dimension | ||||||
Size | L | d | e | Size | L | d | e |
| 60 | 180 | 87 | 7 | 350 | 250 | 395 | 10.2 |
| 80 | 150 | 104 | 7 | 400 | 295 | 435 | 10.8 |
| 100 | 170 | 125 | 7.2 | 500 | 285 | 535 | 12 |
| 150 | 180 | 185 | 7.8 | 600 | 300 | 640 | 13.2 |
| 200 | 185 | 239 | 8.4 | 700 | 320 | 740 | 14.4 |
| 250 | 210 | 280 | 9 | 800 | 340 | 845 | 15.6 |
| 300 | 205 | 340 | 9.6 | 900 | 350 | 945 | 16.8 |
